solar light 4s 12v lifepo4 battery pack lithium-ion

Novoxy 12V series lifepo4 battery pack for solar light is with 26650 lifepo4 cells

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 10ah 20ah 30ah
  • Usable Capacity: 256Wh
Send message to us


Novoxy 12.8V solar light battery  is made with high quality 26650 lifepo4 battery,which is UL,CB,UN38.3 and MSDS certificated. and the life cycle is more than 6000 times @ dod 80%


Product Model NOV-1220
Items Basic Parameters

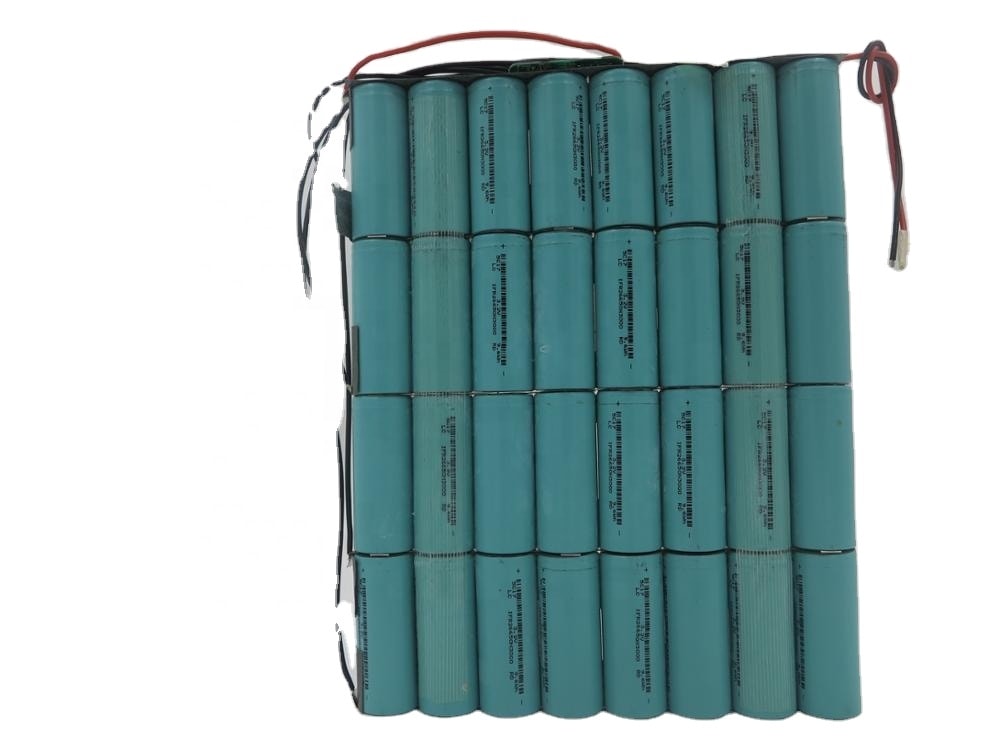

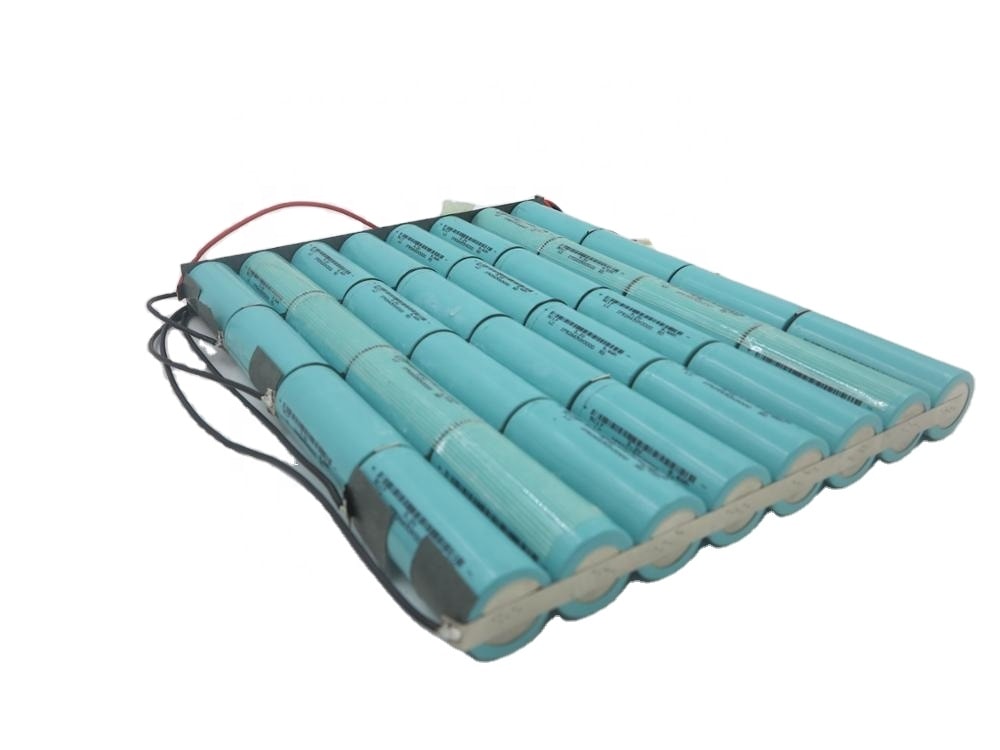

Configuration 4S6P LiFePO4  cells
Norminal Nominal Voltage 12.8V
Nominal Capacity 20Ah
Usable Capacity 256Wh
Physical Dimension custom
Weight 2.3kg
Electrical Operating Voltage Range 10V ~ 14.6V
Standard Charging Current 5A
Standard Discharging Current 10A
Max Charging Current 20A
Max Discharging Current 30A
Peak Discharging Current 50A(1S)
Others Charging Temperature 0 ~ 45 ℃
Discharging Temperature -20 ~ 55 ℃
Design Life 10+ year 25 ℃
Cycle Life > 6000

Details & applications


Grade A

Grade A li-ion cells

1000 cycles

Long cycle life up to 1000 cycles at 80%DOD.


PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.


Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
