18650 21700 lithium ion ebike battery pack with bottle case
18650 21700 lithium ion battery pack with bottle case for electric bike
- Nominal Voltage: 48V 36V 24V
- Nominal Capacity: 12.8Ah or custom
- Usable Capacity: 468Wh
18650 21700 lithium ion battery pack with bottle case for electric bike
Bottle battery is made with high quality 18650/21700 lithium ion battery cell and smart BMS.Itprovides high energy density, long cycle life, and low self-discharge rate. The battery capacity can range from 200 to 1000 watt-hours, depending on the bike's intended use and the rider's preferences. A higher capacity battery will provide more power and longer range, but it will also add weight to the bike.
| * Longer life compared to Lead-Acid battery | * Over-Charging safety protection |
| * 60% more energy | * Over-Discharging safety protection |
| * Up to 70% weight savings | * Over-Current safety protection |
| * Portable handdle, easy to install and remove | * Short Circuit safety protection |
| * Faster charging times | *High Temperature safety protection |
| * 100% available capacity | *in-built safety protection BMS |
| * NO FIRE, NO EXPLOSIONS | *Eco-friendly, no pollution |
| Product Model | NOV-B3613 | |
| Items | Basic Parameters | |
| Type | Installation | Down Tube |
| Configuration | 10S4P -1865 3200mah | |
| Norminal | Nominal Voltage | 36V |
| Nominal Capacity | 12.8Ah | |
| Usable Capacity | 468Wh | |

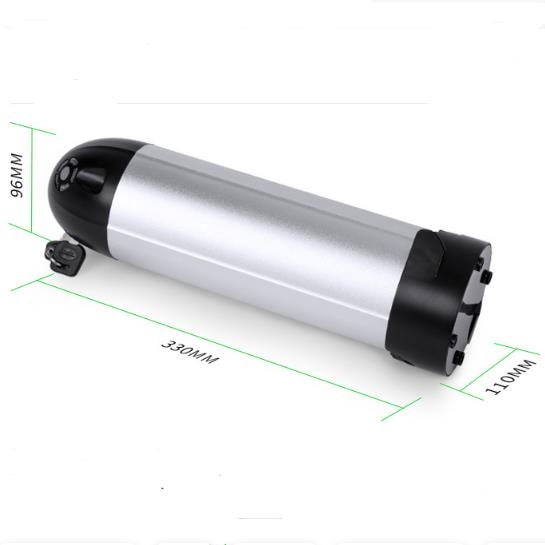

| Physical | Dimension | D99 mm * H 330mm |
| Weight | 3KGs | |
| Electrical | Operating Voltage Range | 30V ～ 42V |
| Standard Charging Current | 3A | |
| Standard Discharging Current | 20A | |
| Max Charging Current | 5A | |
| Max Discharging Current | 30A | |
| Peak Discharging Current | 100A(1S) | |
| Others | Charging Temperature | 0 ～ 45 ℃ |
| Discharging Temperature | -20 ～ 55 ℃ | |
| Design Life | 3+ year 25 ℃ | |
| Cycle Life | ＞ 1000 | |
Grade A li-ion cells 18650 /21700
Long cycle life up to 1000 cycles at 80%DOD.
PCM&BMS use the lastest American or Japanese chips.
Superb assembly process, high standard test technology, high performance safety.
No toxic, no air pollution, good for evironmental protection.
Free maintenance, easy for installation, plug&play.
Factory wholesale price&Long time warranty.
