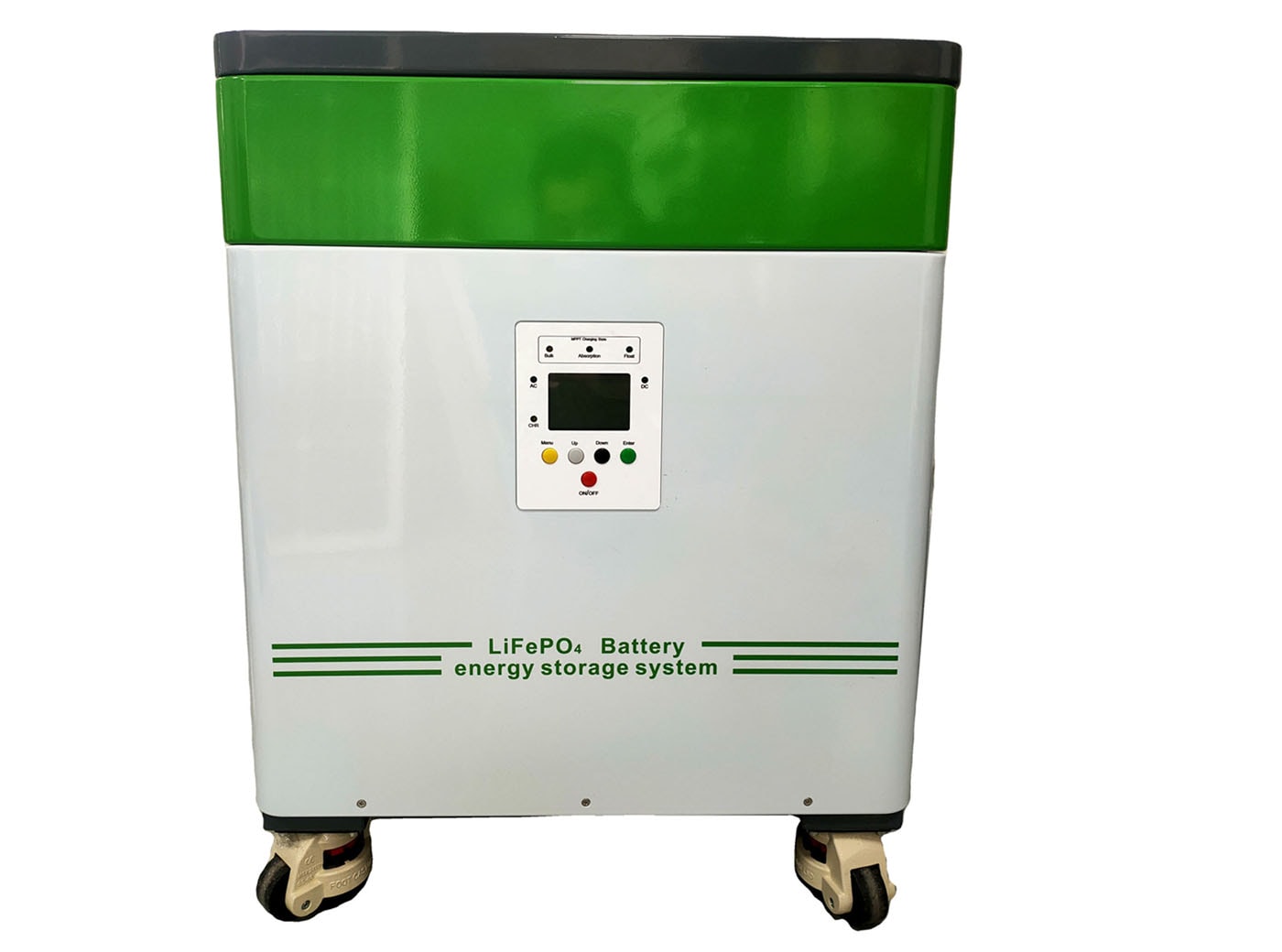

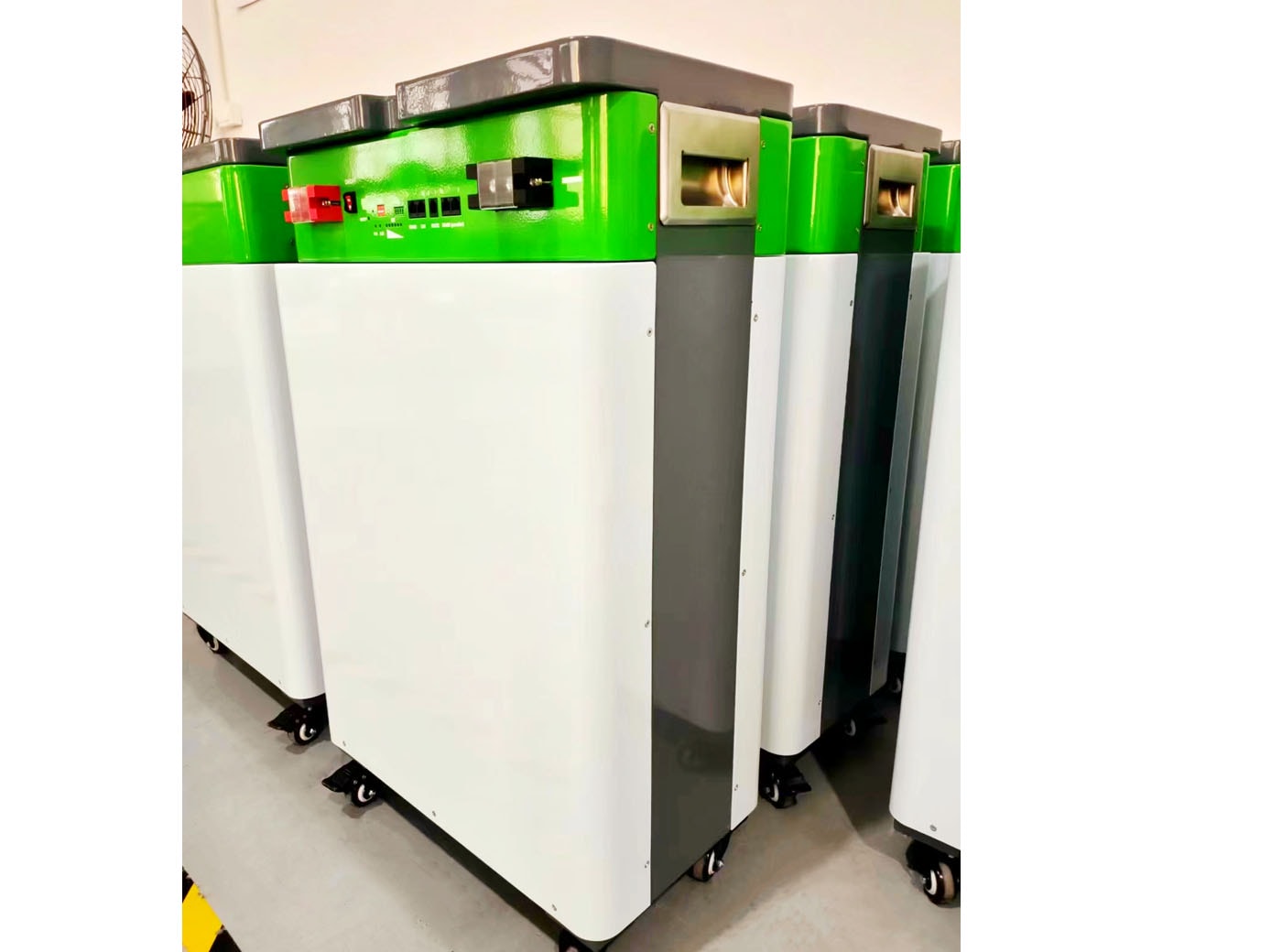

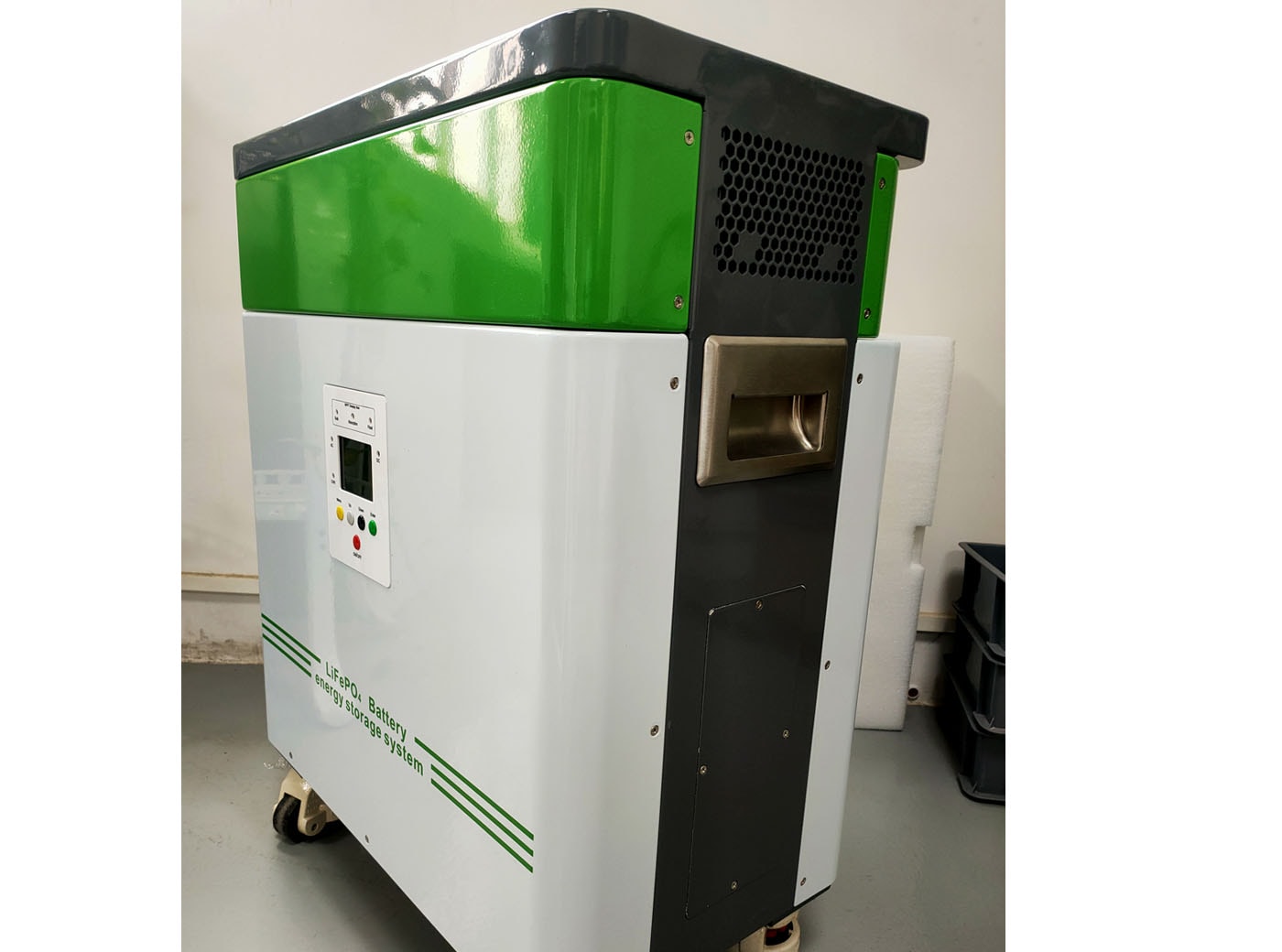

ALL-IN-ONE energy storage system 48V 51.2V for home power backup

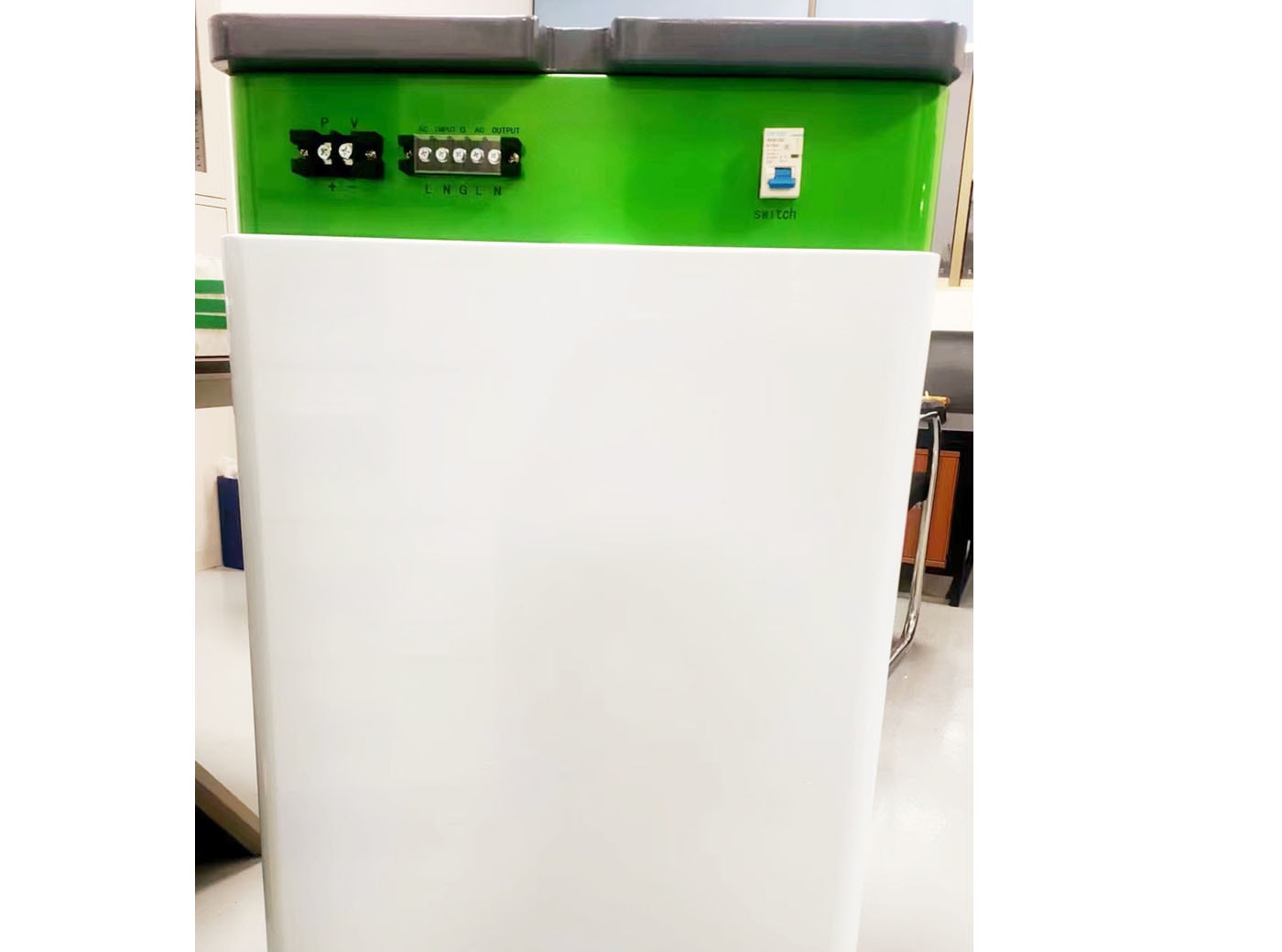

Floor mounted Battery,inverter,switch build in;
5Kwh batteries parallel, 5kw inverter;
MPPT for solar, deep cycle LiFePO4 battery;
All in one system, high efficiency of use and application;
Modular design,convenient maintenance and expansion;
Maximum 15 battery packs can be parallelly communicated extention;
Communication: CAN,RS232MRS485
With/without inverter optional, different inverter build in customize;
Application: Solar/Wind energy storage system,UPS,backup power,Medical equipment,Lighting, 48VDC equipment etc.

Send message to us


6000 Times deep cycle life
Support Inverter Communication
Support Customization

Use stored energy to power your home during and outage
Recharge with clean energy when peired with solar
Kepp appliances running without interruption


Model NOV-24200A NOV-48200A NOV-48280A NOV-48304A
Rated capacity 200AH 200AH 280AH 304AH
Norminal voltage 25.6V 51.2V 51.2V 51.2V
Charing cut-off voltage 29.2V 58.4V 58.4V 58.4V
Discharing cut-off voltage 20.8V 41.6V 41.6V 41.6V
Power  5.12kwh 10.24KWh 14.3kwh 15.6kwh
Standard charge current 100A 100A 100A 100A
Max chargecurrent 150A 150A 150A 150A
Standard discharge current 100A 100A 100A 100A
Max dischargecurrent 150A 150A 150A 150A
Temperature Charging @ 0+45 ℃     Discharging @-20+55 ℃  Storage@ -10+45 ℃
Communication port Internal Communication
Letter of agreement Compatible with many mainstream inverter potocols on the market
Load Power 3KW 5KW
DC input 24Vdc 48Vdc
MPPT 60-180Vdc,80A
AC input 220Vac,50Hz
AC output 220Vac,50Hz
Product Dimension L814*W550*H320mm L1016*W550*H320mm
Packing size Carton:924*671*515mm Casket:1126*671*515mm
Recharging working Temperature 0°C-45°C
Discharging working Temperature   --20°C-55°C
N.W 110kg 185kg 205kg 225kg
G.W 125kg 205kg 225kg 235kg

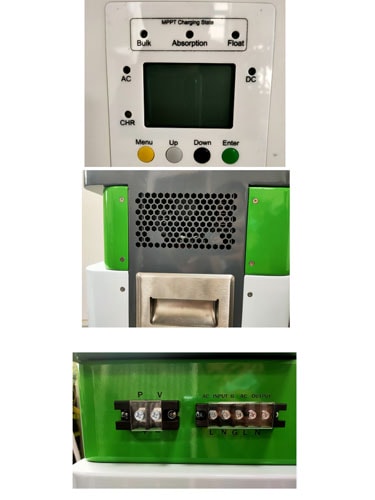

Details & applications



Grade A

Grade A LiFePO4 cells

6000 cycles

Long cycle life up to 6000 cycles at 80%DOD.

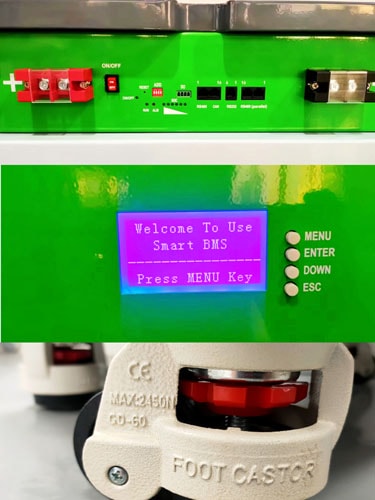

PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.


Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
