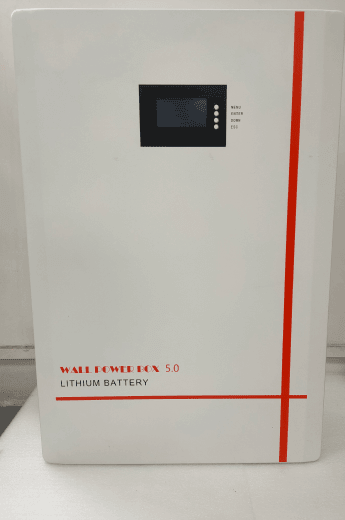

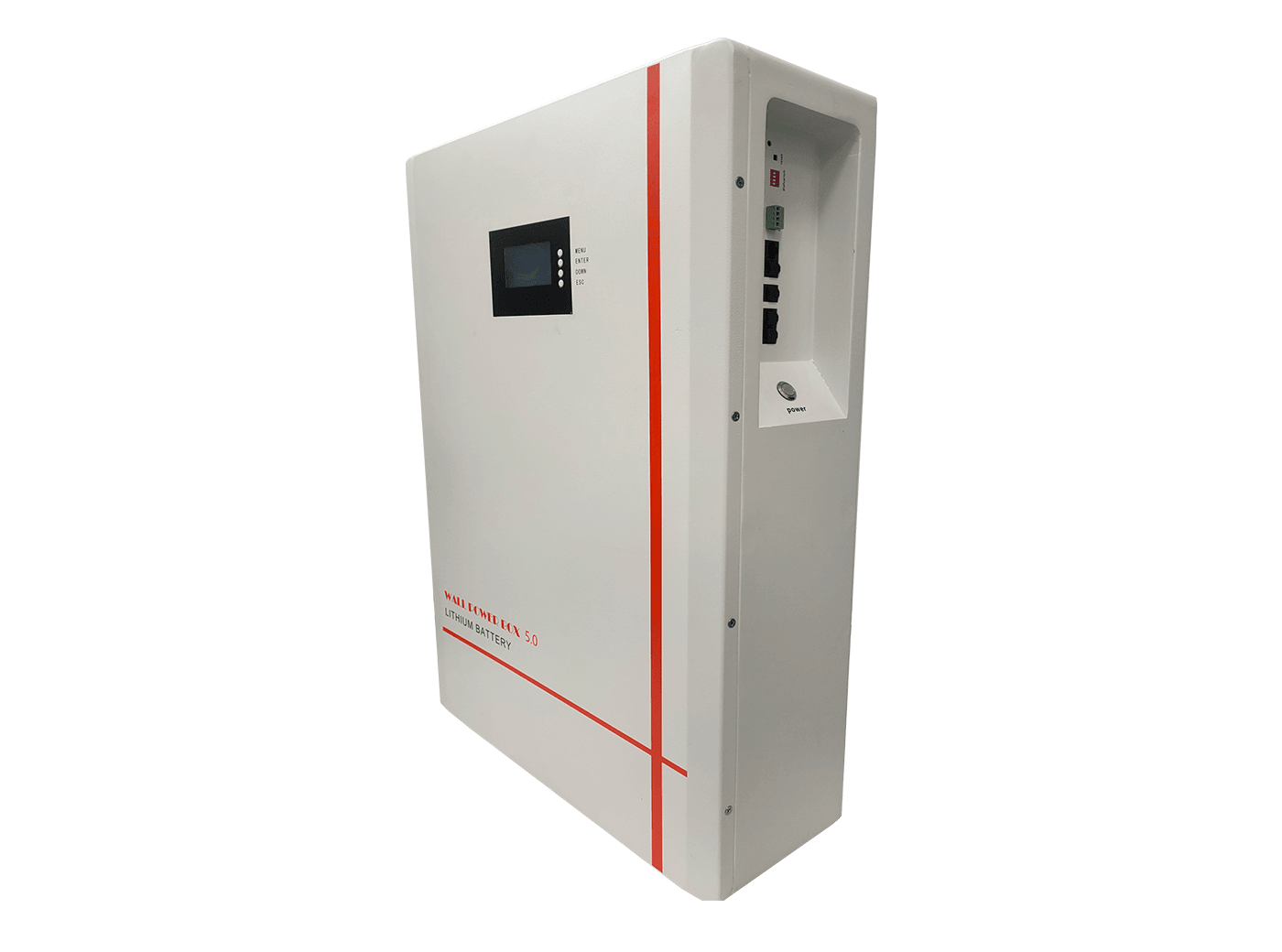

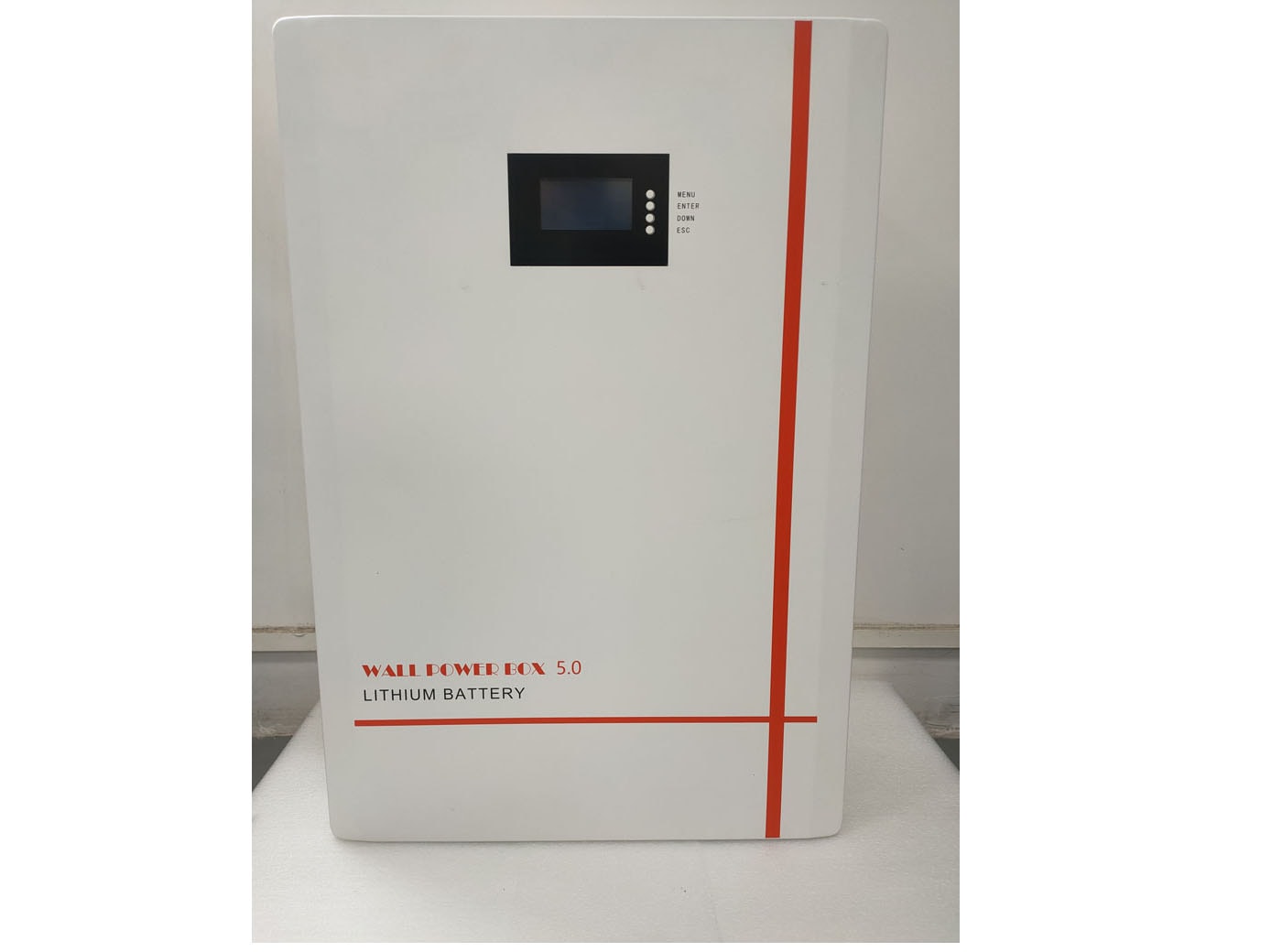

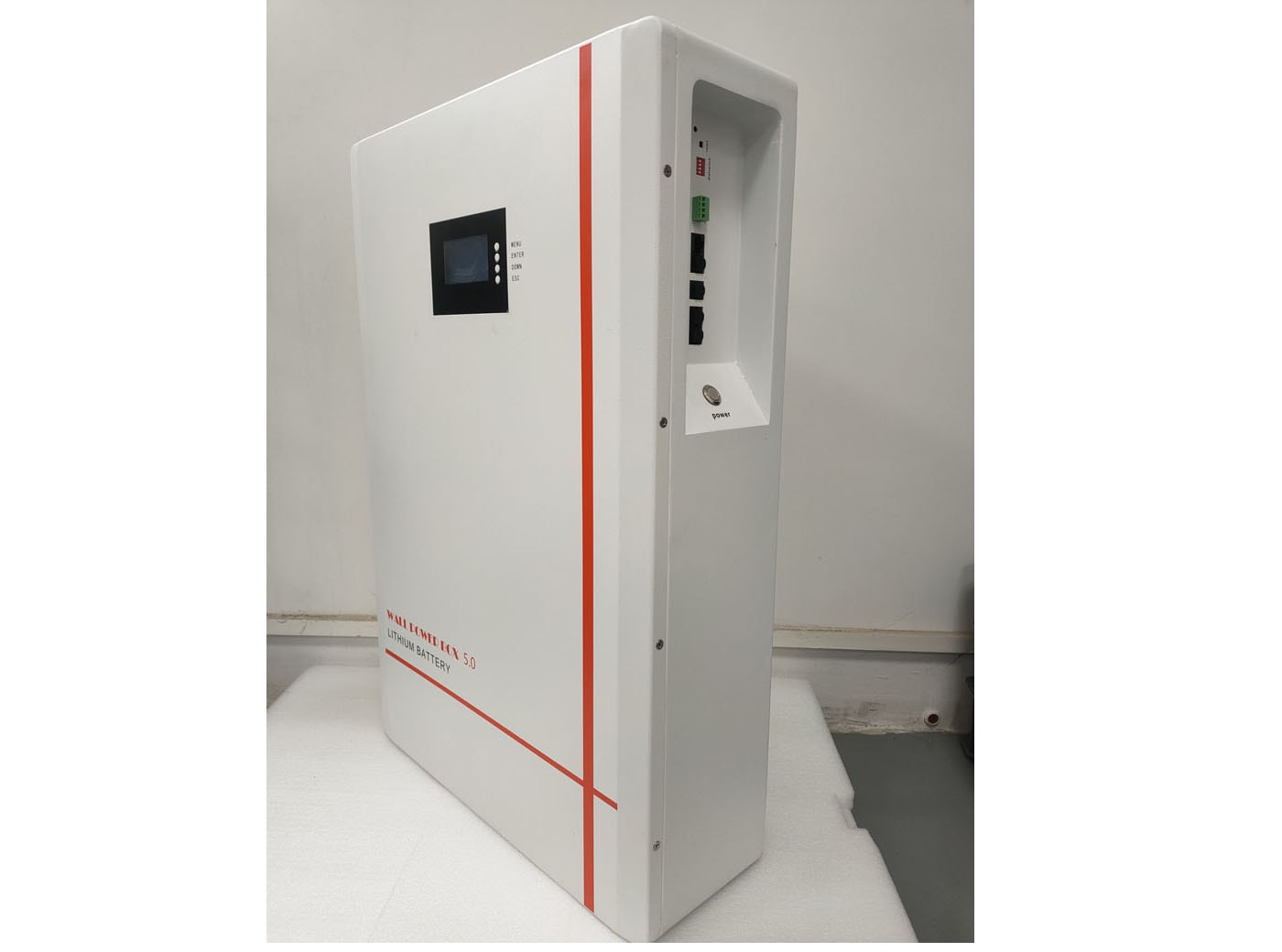

Household LiFePO4 solar home energy storage battery 51.2V series power-wall type

Household LiFePO4 battery series are in high-safety, high-reliability solar energy storage systems based on lithium iron phosphate batteries and equipped with battery management systems (BMS),
RS485+CAN+RS232 communications, compatible with many mainstream inverter protocols on the market.
The main function is to store power generated by PV and power your home appliances,provide backup power for households during blackouts, reduce electricity bills and protect the environment by consumption of solar energy.

Send message to us


Novoxy power wall Batteries enhance the system's power independence by storing solar energy, allowing you to enjoy clean energy from your own home at night.Paired with solar energy, the use of sunlight to charge, can power the home for several days.

Ensure uninterrupted operation of household appliances and all-round energy supply.Stylish in appearance, easy to install,

simple in design, sturdy and durable, perfect for a variety of home styles.


Model NOV-4850W NOV-48100W NOV-48150W NOV-48200W
Rated capacity 50AH 100AH 150AH 200AH
Norminal voltage 51.2V 51.2V 51.2V 51.2V
Charing cut-off voltage 58.4V 58.4V 58.4V 58.4V
Discharing cut-off voltage 41.6V 41.6V 41.6V 41.6V
Power  2.56kwh 5.12kwh 7.68kwh 10.24kwh
Standard charge current 10A 20A 30A 40A
Max chargecurrent 50A 100A 150A 200A
Standard discharge current 10A 20A 30A 40A
Max dischargecurrent 50A 100A 150A 200A
Temperature Charging @ 0+45 ℃     Discharging @-20+55 ℃  Storage@ -10+45 ℃

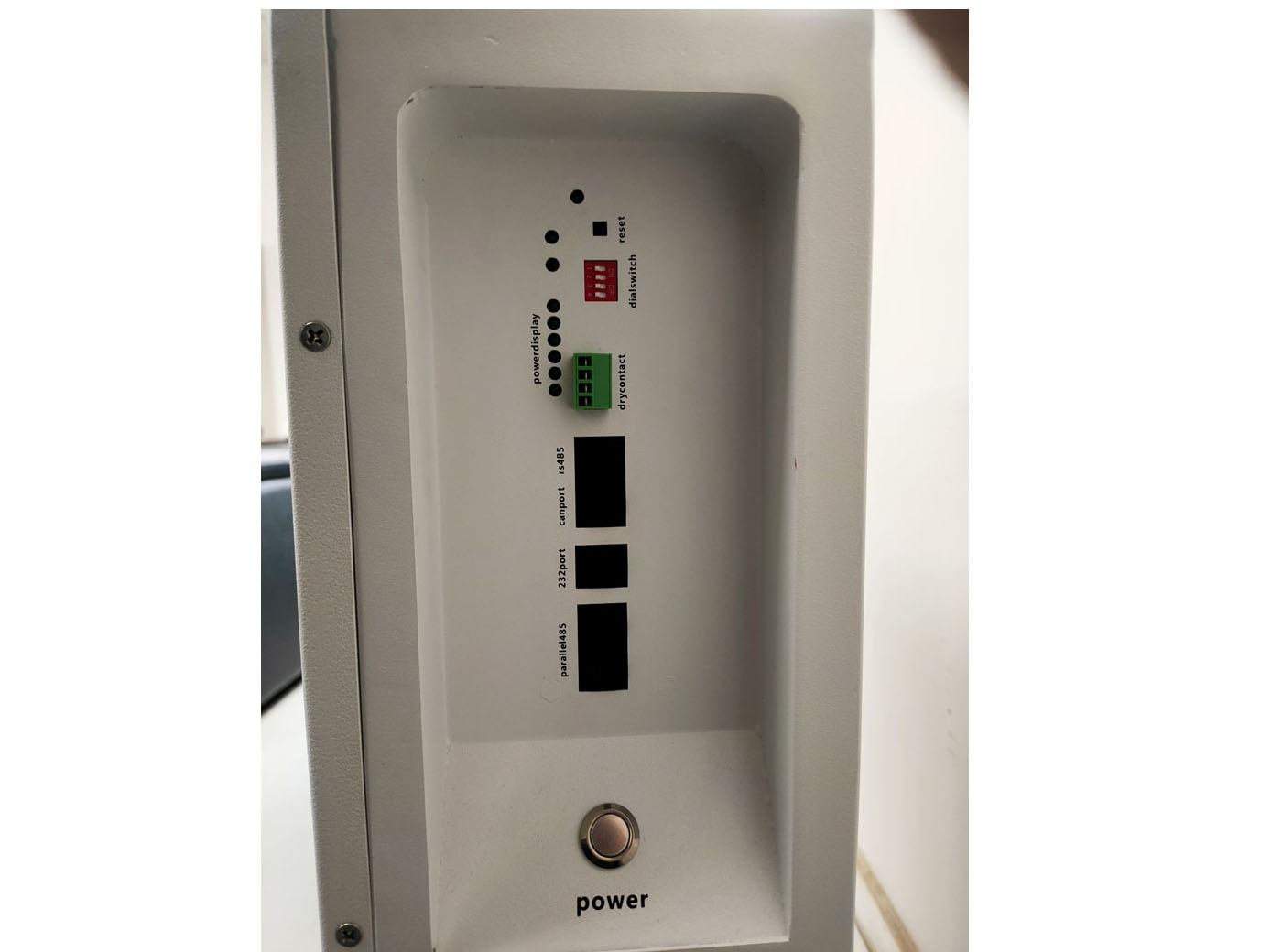

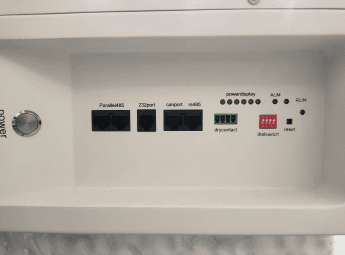

Communication port RS485 /RS232/CAN
Letter of agreement Compatible with many mainstream inverter potocols on the market
Dimension  L660*W450*H155mm L790*W496.4*H201.2mm
Packing size Casket:800*500*200mm Casket:1010*580*356mm
N.W 30Kgs 46Kgs 76Kgs 92Kgs
G.W 42Kgs 58Kgs 92Kgs 108Kgs

Details & applications


Grade A

Grade A LiFePO4 cells

6000 cycles

Long cycle life up to 6000 cycles at 80%DOD.


PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.


Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
