2200W UPS portable power supply energy storage system

Without car ignition function: For the sake of safety, the car point will instantly generate a large current, easy to burn out.
Battery Power: 1620Wh, overall power: 2000W
Charging time: 13 Hours, according to the built-in adapter DC26V/4.5A,the calculated power is 117wh.
It can be charged with solar panel input, and 2*100W Anderson is recommeded. Send message to us

Features

· 110V/230V pure sine wave AC output, 2220Wh super giant capacity lithium iron phosphate battery cell, durable endurance;
· AC output 2200W high power, peak power up to 4000W, excellent performance is not anxious;
· Support AC AC direct charging (1100W) and MPPT charging (500W), support dual simultaneous charging; ·
.AC/DC/USB-C/USB-A/Car Filler/XT60 Six interfaces, up to 13 devices at the same time;

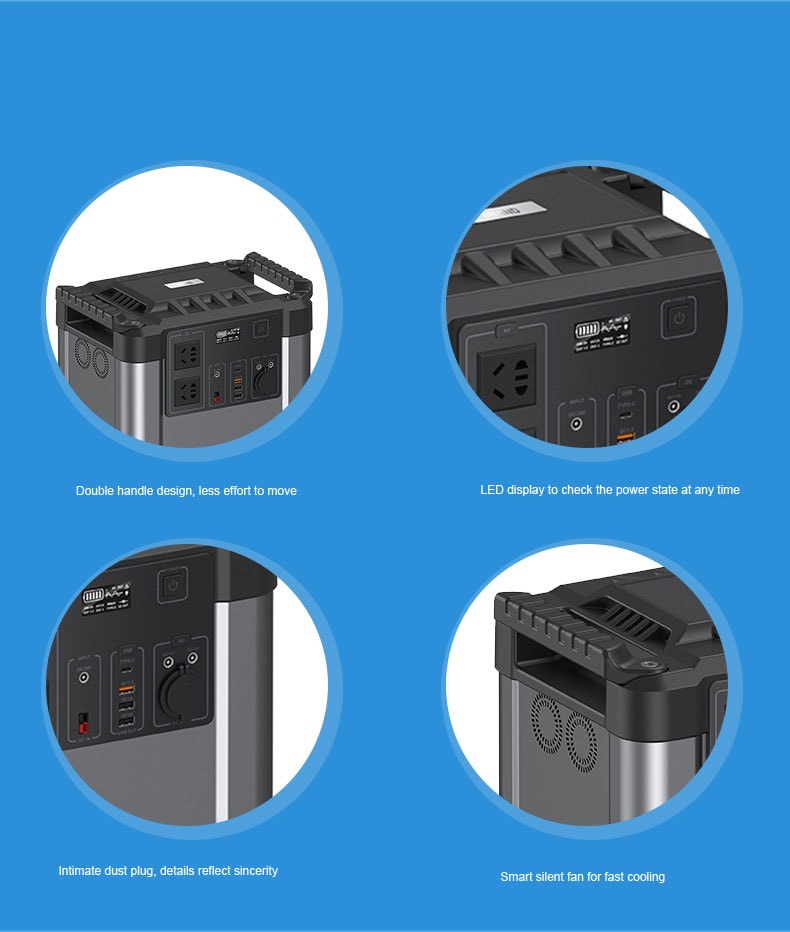

.Twin handle design, easier to move, support emergency LED lights, camping picnic more convenient;
· 9 rigorous tests, built-in active cooling system, with AC interface protection board, anti-false touch;
· With LCD digital display large screen, clear partition of function panel, independent sub-control switch, safety and energy saving.

Specifications

Model Number NOV-G1000M NOV-G2000B
Battery  capacity 300Ah 3.7/1110Wh 438Ah 3.7V/1620Wh
Rated Power 1000W, Peak 3000W 2000W, Peak 4000W
Weight Cross weight: 14kg; Net Weight: 11.5kg Cross weight: 17kg; Net Weight: 14.5kg
Battery Ternary polymer lithium battery Ternary polymer lithium battery
AC Input 110V-220V 110V-220V
DC Input 26V/4.5A 26V/4.5A (117w max)
Solar energy (18v~30V,50W~200W) DC or Anderson (18v~30V,50W~200W) DC or Anderson
Car Charge 12V 4.5A 12V 4.5A
AC output 220V 50Hz/110V 60Hz 220V 50Hz/110V 60Hz
DC output 12V/7A Max 12V/7A Max
2 USB Ports 5V 3.1A max;QC 3.0:5V/3A,9V/2A/12V/5A 5V 3.1A max;QC 3.0:5V/3A,9V/2A/12V/5A
1 Type-C PD60W,5V/3A,9V/3A,12V/3A,15V/3A,20V/3A (bidirectional) PD60W,5V/3A,9V/3A,12V/3A,15V/3A,20V/3A (bidirectional)
Car charging output 12V 10A Max 20V 3A (bidirectional) 12V/10A
Operating temperature -10°C~-60°C -10°C~-60°C
Package size 410*310*340mm 410*310*340mm
Charging cycle 500 times 500 times
Multiple security protection SMART BMS protection SMART BMS protection

Details & applications

Advantage

Grade A

Grade A LiFePO4 cells

6000 cycles

Long cycle life up to 6000 cycles at 80%DOD.

chips

PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.

Convenient

Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
