Specifications
Model number: NOV-1000F
Ac output waveform: pure sine wave
Cell type: Lithium iron phosphate (50AH 7S1P 3.2V) 27148115
Battery pack size: 1120WH
Service life: more than 1500 times
Input:
AV socket charging: 480W charging power (two-way fast charging 2.5 hours full)
Anderson: 110W(10-26V/5A MAX, MPPT supported)
DC socket: 110W(10-260V/5A MAX and solar energy charging in the same way cannot be used at the same time)

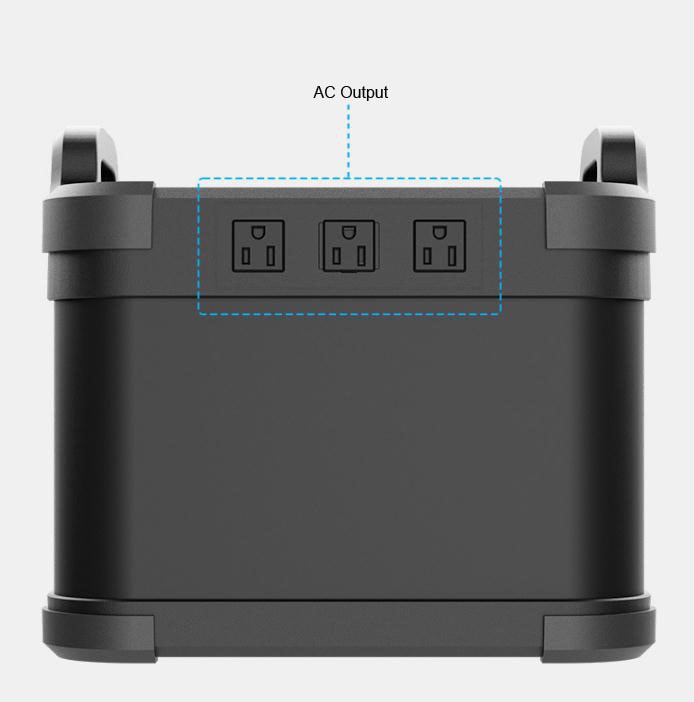

Output:
Voltage: 220V±10%/50Hz optional 110V(US and Japanese regulations 2, GB, European regulations 2)
Power: 1000W Protection: 1200W Peak value: 2000W (2ms)
Protection function: output short circuit, overload, input overvoltage, undervoltage, overtemperature, etc
Transport and exchange efficiency: 92%

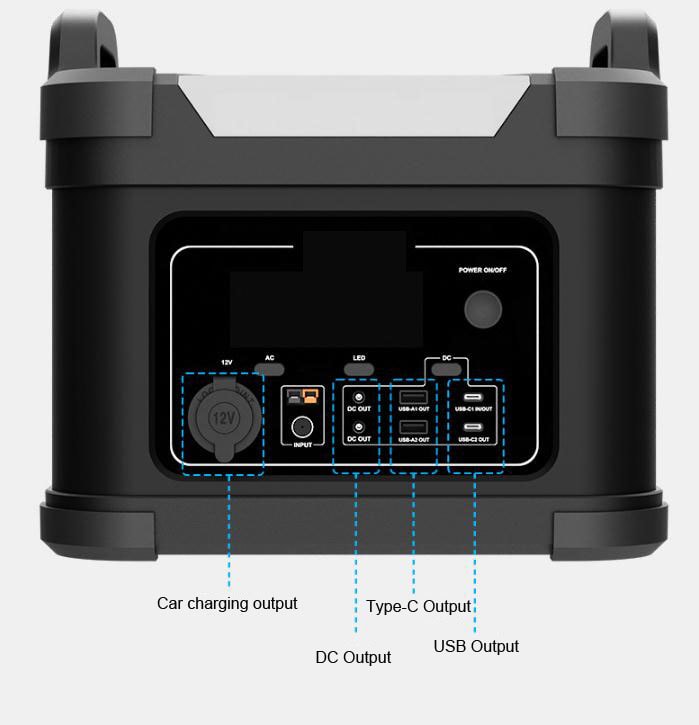

Type-C output:
Type - C1: PD 100 w5v/A, 5.0 9 v / 5.0 A, 12 v / 5.0 A, 15 v / 5.0 A, 20 v / 5.0 A
Type-C2: PD 30W
USB-A output:
USB1:5V/3.0A,9V/2.0A,12V/1.5A
USB2:5V/3.0A,9V/2.0A,12V/1.5A
DCX2: Each 12V/5A (Total) voltage stabilized output, independent current limiting
Car charger Cigarette lighter: 12V/10A MAX 13.2V/11A
Wireless charge: 15W
LED Light: 4W (red and white)
AC/DC all output outlets no load automatic shutdown (shutdown 30 seconds -1 minute),AC/5W automatic shutdown,DC/50ma automatic shutdown
Overtemperature protection: ≥85℃
Overtemperature recovery: ≤45℃
Fan startup: ≥55 ° C
BMS protection function:
Under voltage protection, over voltage protection, over current protection, short circuit protection, over temperature protection (self recovery)
